This series of collinear antennas is designed for wireless applications that require high performance and wide bandwidth, featuring excellent PIM and PIP specifications.
Unique patented technology fully optimizes antenna utilization, achieving higher antenna gain at the same length, representing the world’s advanced high-gain antenna manufacturing technology. At the same time, special PCB design and manufacturing processes improve intermodulation levels.
In addition to improving intermodulation levels, it also enables more stable and excellent antenna performance, ensuring each antenna has consistent direction, angle, and VSWR throughout its operating bandwidth.
Features:
√ Excellent bandwidth for full-spectrum coverage
√ Built-in DC grounding, strong lightning protection, effectively reducing noise
√ Patented PCB technology provides the most reliable RF pattern stability
√ Industry-leading low intermodulation technology (-150dBc), providing low noise characteristics
√ Optimal network performance
√ Exceptional peak power handling capability (25kW)
Performance parameters:
| Model | ATQ-136-160-200-6.6-01 | |
| Gain dBd(dBi) | 6.0(4.0) | |
| Frequency | 137-160MHz | |
| Tuning bandwidth | Full band | |
| Standing wave ratio (return loss) | <1.5:1(14dB) | |
| Impedance Ω | 50 | |
| Vertical plane lobe width | 12.5 | |
| Beam horizontal width | Omni+/-0.5dB | |
| Input power W | 250 | |
| Peak power kW | 25 | |
| Third-order intermodulation (2x20W)dBc | -125 | |

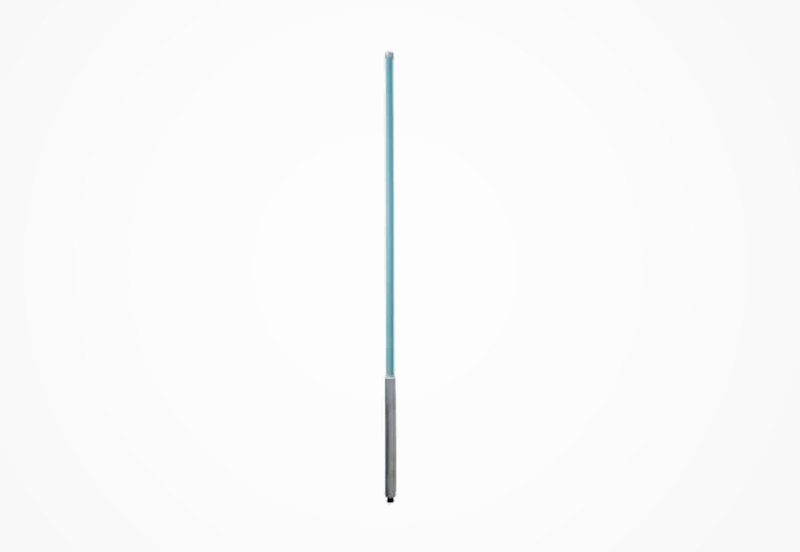

| Structure | sky blue fiberglass radome | |
| Length mm | 3600 | |
| Radome diameter mm | 62 | |
| Weight kg | 5.5 | |
| Connector | N-Female | |
| Installation area | 500mmx∅48.5mm diameter Ecofilm TM plated Aluminium | |
| Wind resistance area | No ice | 1711 |
| There is ice | 2997 | |
| Side stamping@160km/hN | 203 | |
| Maximum wind resistance km/h | 240 | |
| Torque@160km/hNm | 358 | |
| Packing weight kg | 70 | |
| Package size mm | ∅80*3600(diameter*length) | |
