A phased array antenna is an antenna system that achieves electronic beam steering by adjusting the phase and amplitude of the radiating elements in the array. It consists of an antenna array, a feeding network, and a beam controller. This antenna is widely used in the Ka-band satellite communication field.
Main parameters
parameter | minimum | typical | maximum | unit | |
transmission frequency | 27.5 | 31 | |||
Receiving frequency | 17.7 | 21.2 | GHz | ||
omnidirectionalRadiant power（EIRP@90°） | ≥44dBW@90° | ||||
Increase noise ratio（G/T@90°） | ≥8Db/K@90° | ||||
Pointing error | ≤1dB | ||||
Transmission and reception（TX/RX）isolation | ＞105dB | ||||
axial ratio | ≤3dB@90° | ||||
beamwidth | 3.2°TX；3.5°RX@90° | ||||
Scanning range | elevation angle20-90° | ||||
otherparameter
polarization mode | LHPC/RHPC |
Overall dimensions（Receive） | |
Overall dimensions（launch） | 235*160*15mm |
power input | 24V（19V-32V） |
Operating Temperature | -40～+60℃ |
Storage temperature | -55～+70℃ |
Antenna array diagram（ｍｍ）

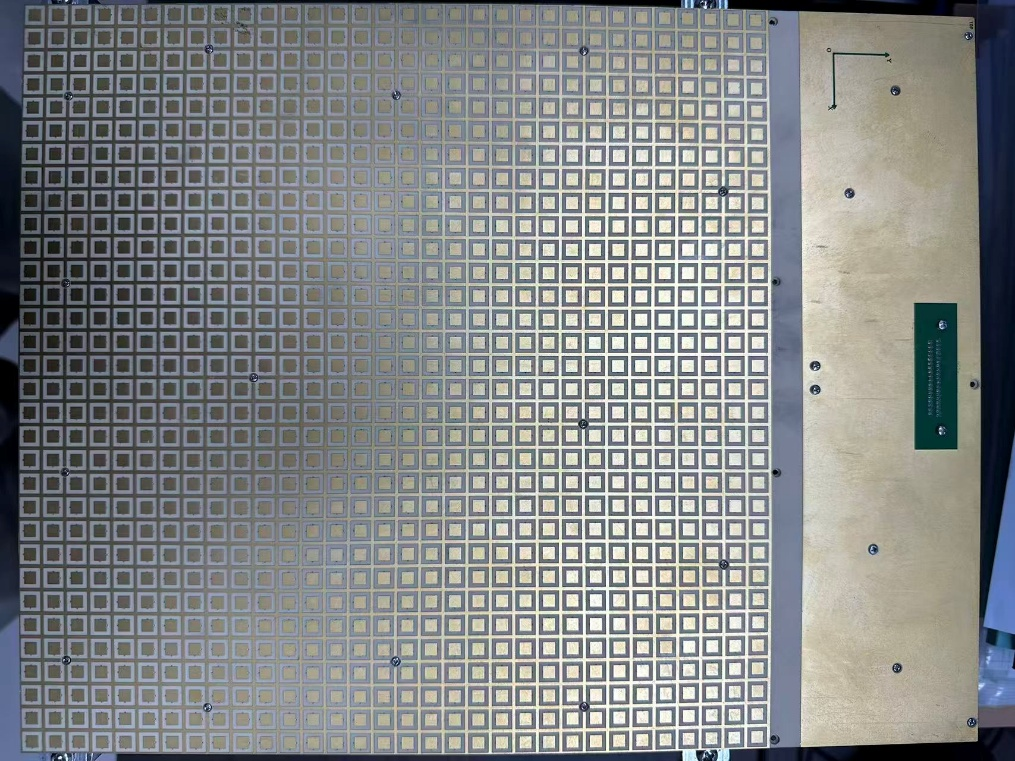

Transmitting antenna

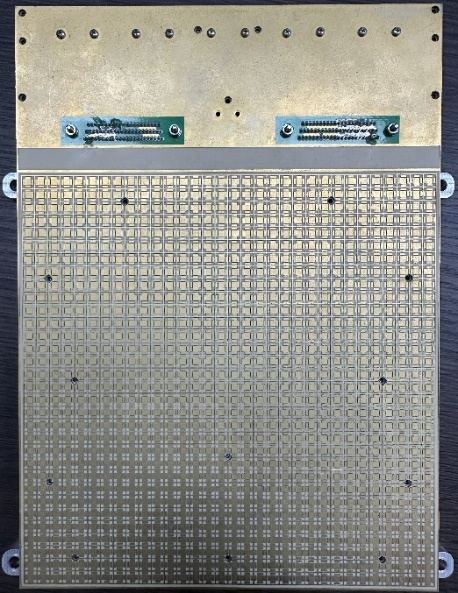

receiving antenna
