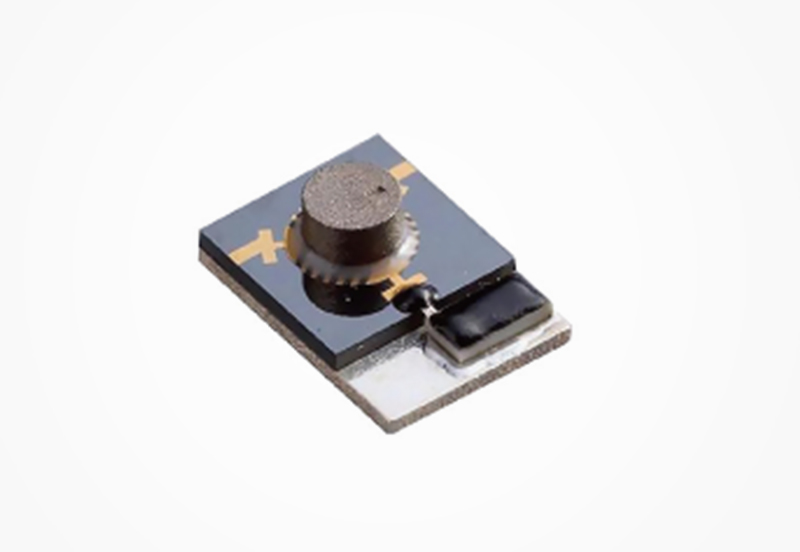

The compact 1-port RF ferrite isolator front end circuit is a miniaturized passive core component tailored for high-density RF front-end systems, adopting advanced ferrite non-reciprocal transmission technology to realize unidirectional signal propagation in limited circuit space. Different from traditional multi-port bulky isolators, this single-port integrated design optimizes the internal microstrip structure and magnetic circuit layout, effectively reducing the device footprint while retaining excellent RF isolation performance. It relies on the Faraday rotation effect of high-performance ferrite materials, which changes the polarization state of high-frequency electromagnetic waves under a fixed bias magnetic field, ensuring low-loss forward signal transmission and efficient absorption of reverse reflected signals. This structural feature eliminates signal crosstalk and impedance mismatch interference commonly found in compact front-end circuits, providing stable and reliable signal transmission conditions for downstream RF devices.

In practical RF front-end circuit deployment, this compact isolator undertakes core protection and signal stabilization functions for key components such as low-noise amplifiers, mixers, and radio frequency oscillators. Reverse signal reflection caused by load impedance changes, circuit resonance, or external interference is one of the main causes of front-end circuit gain fluctuation, frequency drift, and even component burnout. The 1-port ferrite isolator can effectively isolate reverse power signals with high isolation, suppress standing wave fluctuations of the front-end circuit, and maintain the linear working state of the entire RF front-end system. Its ultra-low insertion loss design ensures that effective RF signals will not be attenuated excessively during transmission, which is crucial for improving the sensitivity and signal-to-noise ratio of the receiving front end.

The miniaturized structural design of this isolator perfectly adapts to the development trend of lightweight and integrated modern RF equipment. It adopts precision integrated packaging technology, abandoning redundant structural parts of traditional isolators, and can be directly embedded in compact PCB circuits and miniaturized RF modules. The optimized ferrite magnetic core and permanent magnet matching structure ensure stable magnetic field performance, avoiding performance degradation caused by long-term operation. Widely applicable to portable communication devices, miniaturized sensor radio frequency systems, and compact test instrument front-end circuits, this 1-port RF ferrite isolator has become an indispensable basic component for improving the stability, anti-interference ability and service life of miniaturized RF front-end systems.
