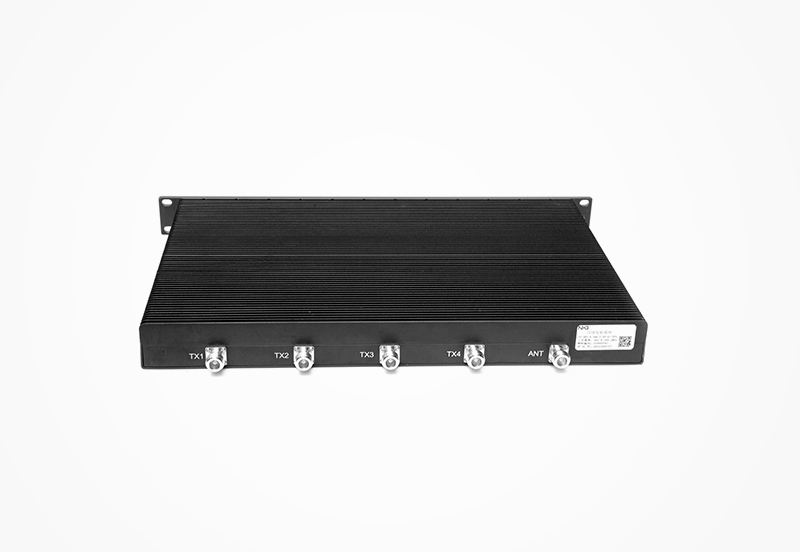

The UHF transmission system is a device used for antenna feeding systems. It can combine multiple RF signals from channel equipment into a single signal, which is then transmitted to the antenna. This transmission system adopts an efficient heat dissipation design, with all components integrated on the heat sink, thereby effectively improving heat dissipation efficiency. As a result, it not only increases transmission power but also ensures that multiple high-power signals can operate normally at the same time. Depending on the user's power requirements, an air-cooling function can also be added to the system.
The operating frequency, number of channels, and power capacity can all be customized.
Operating temperature: -30°C to 75°C.
| Model No. | Frequency range(MHz) | Bandwidth(MHz) | Port lsolation(Min) | Reverse Isolation(Min) | VSWR | Input Power(W/CH) | Insertion Loss(dB) |
| 1U-TS-330-512-XX-21-01 | 330-370 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 50 | 3.8 |
| 370-400 | |||||||
| 400-512 | |||||||
| 1U-TS-330-512-XX-31-01 | 330-370 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 50 | 5.8 |
| 370-400 | |||||||
| 400-512 | |||||||
| 1U-TS-330-512-XX-41-01 | 330-370 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 50 | 6.8 |
| 370-400 | |||||||
| 400-512 | |||||||
| 1U-TS-330-512-XX-51-01 | 330-370 370-400 400-512 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 30 50 | 9.0 |
| 3U-TS-330-512-XX-51-01 | |||||||
| 1U-T-330-512-XX-61-01 | 330-370 370-400 400-512 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 30 50 | 9.0 |
| 3U-TS-330-512-XX-61-01 | |||||||
| 1U-TS-330-512-XX-71-01 | 330-370 370-400 400-512 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 25 50 | 10.0 |
| 3U-TS-330-512-XX-71-01 | |||||||
| 1U-TS-330-512-XX-81-01 | 330-370 370-400 400-512 | 2 | TX-TX70dB | ANT-TX 50dB | 1.3 | 25 50 | 10.0 |
| 3U-TS-330-512-XX-81-01 | |||||||
| Model rules: size-product category TS-start frequency-stop frequency-power-number of combined circuits-version number | |||||||
