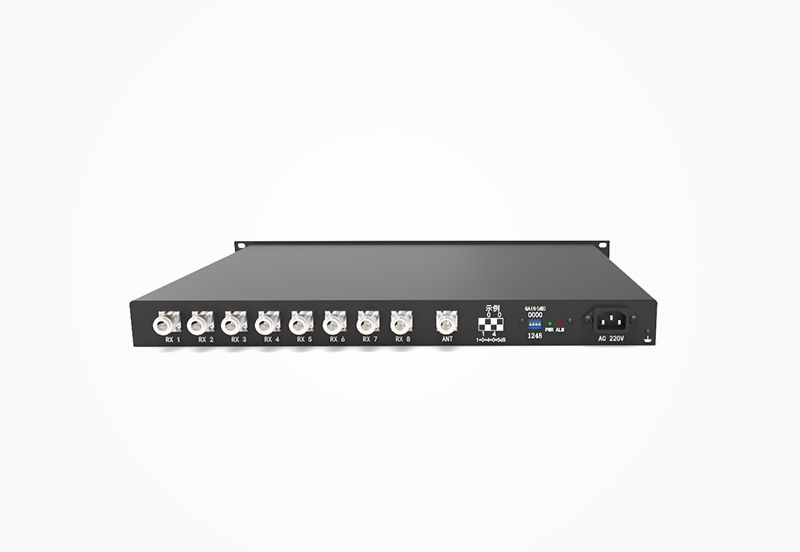

The UHF receiving system is a device capable of decomposing the radio frequency signals received by the antenna in the antenna feed system into multiple signals.
1. Port isolation: Isolation from RX port to RX port ≥ 25 dB;
2. Built-in helical filter, noise isolation effect ≥ 75 dB;
3. Gain adjustment: Can be adjusted through dip switches with 1/2/4/8 positions, with a gain step of 1 dB.
4. Noise figure: ≤ 2.5 dB;
5. Operating temperature: -30°C to 75°C.
| Model No. | Frequency range(MHz) | Bandwidth(MHz) | Isolation(dB) | VSWR | Voltage Required | Connector Type |
| 1U-RS-330-512-XXV-12-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-13-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-14-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-15-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-16-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-17-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 1U-RS-330-512-XXV-18-01 | 330-370 | 5 | ≥25 | 1.3 | 12V/48VDC 220VAC | N-F/TNC-F Other |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| Model rules: size-product category RS-start frequency-stop frequency-power supply V-number of branches-version number | ||||||
