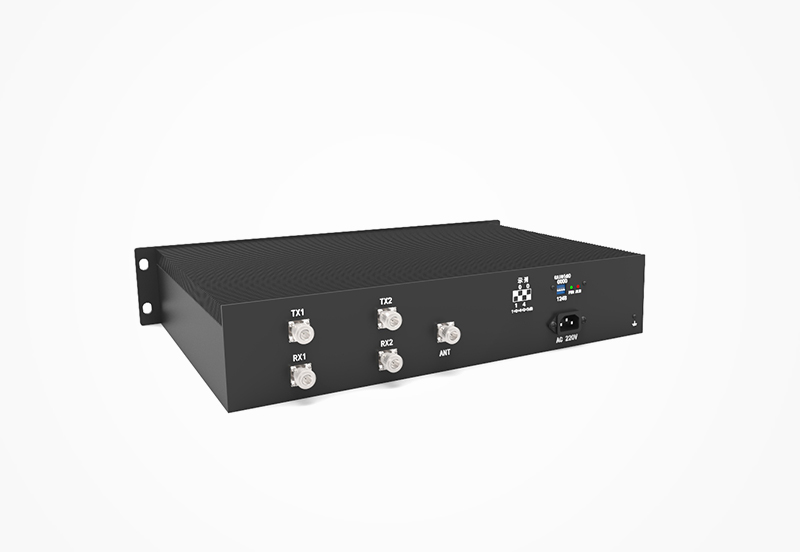

1. Port isolation: 25 dB between RX-RX, 50 dB between ANT-TX, 70 dB between TX-TX.
2. Voltage standing wave ratio (VSWR): 1.3 at the antenna port, 1.25 at the receiving/transmitting port;
3. Built-in cavity-type duplexer, with transceiver isolation greater than 85 dB;
4. Gain adjustment: adjusted using a 1/2/4/8-position DIP switch, with a gain step of 1 dB.
5. Operating temperature range: -30°C to 75°C.
| Model No. | Frequency range (MHz) | Bandwidth(MHz) | RX/TX Separation(MHz) | Voltage Required | Input Power | Insertion Loss |
| 2U-MS-330-512-XX-221-01 | 330-370 | 5 | ≥10 | 12VDC 48VDC 220VAC | 50W/CH | 4.8dB (Contains duplexer) |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 2U-MS-330-512-XX-331-01 | 330-370 | 5 | ≥10 | 12VDC 48VDC 220VAC | 50W/CH | 7.8dB (Contains duplexer) |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 2U-MS-330-512-XX-441-01 | 330-370 | 5 | ≥10 | 12VDC 48VDC 220VAC | 50W/CH | 7.8dB (Contains duplexer) |
| 370-400 | 4 | |||||
| 400-512 | 3 | |||||
| 3U-M-330-512-XX-551-01 | 330-370 370-400 400-512 | 5 4 3 | ≥10 | 12VDC 48VDC 220VAC | 30W/CH | 9.0dB (Contains duplexer) |
| 4U-MS-330-512-XX-551-01 | 50W/CH | |||||
| 3U-MS-330-512-XX-661-01 | 330-370 370-400 400-512 | 5 4 3 | ≥10 | 12VDC 48VDC 220VAC | 30W/CH | 9.0dB (Contains duplexer) |
| 4U-MS-330-512-XX-661-01 | 50W/CH | |||||
| 3U-MS-330-512-XX-771-01 | 330-370 370-400 400-512 | 5 4 3 | ≥10 | 12VDC 48VDC 220VAC | 25W/CH | 10.0dB (Contains duplexer) |
| 4U-MS-330-512-XX-771-01 | ||||||
| 50W/CH | ||||||
| 3U-MS-330-512-XX-881-01 | 330-370 370-400 400-512 | 5 4 3 | ≥10 | 12VDC 48VDC 220VAC | 25W/CH | 10.0dB(Contains duplexer) |
| 4U-MS-330-512-XX-881-01 | 50W/CH | |||||
| Model rules: Dimensions - product category MS - starting frequency - ending frequency - average power - number of transmitting/receiving/antennas - version number | ||||||
