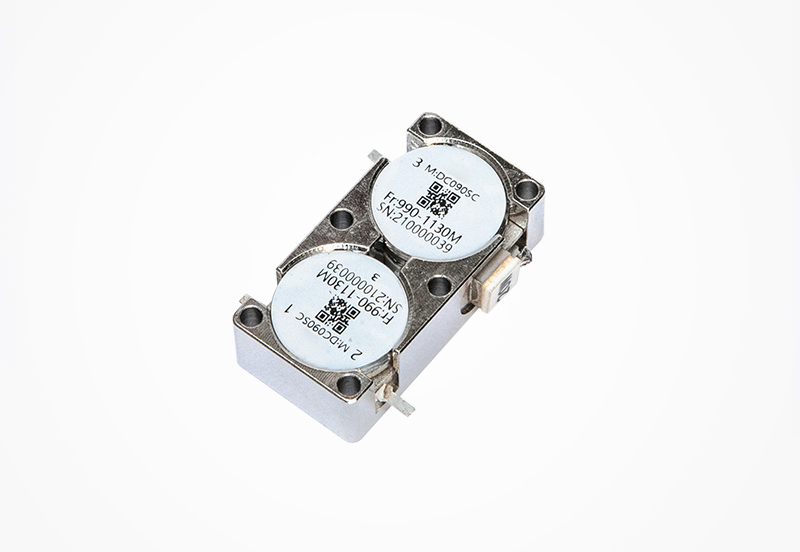

drop in circulator and circulators are widely used in mobile communication base stations, relay stations, and phased array radar systems due to their simple manufacturing process, ease of installation and soldering, as well as advantages such as low loss and high isolation.
They can provide various frequency products in the 30 MHz to 50 GHz range.
According to customer requirements, the load side can be connected to high-power resistors with power ratings of 10-500 watts, or to attenuators with 1-30 dB.
Products can be designed according to the user's specific specifications and size requirements.
The installation method of the products can be negotiated and determined according to user needs.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | Isolation(dB Min) | VSWR(Max) | Average power(W) | Operating Temperature(°C) | Size L*W*H(mm) | Connector Type | Product spec |
| DC005SA | 40~70 | 2 | 1.00 | 18.0 | 1.30 | 300 | 0~+60 | 80*80*18 | TAB | |
| 72~76 | Full | 0.80 | 20.0 | 1.25 | 300 | 0~+60 | ||||
| 88~108 | Full | 0.80 | 18.0 | 1.30 | 600 | -30~+60 | ||||
| 118~136 | Full | 0.50 | 20.0 | 1.25 | 800 | -30~+60 | ||||
| 136~174 | Full | 0.50 | 20.0 | 1.25 | 800 | -30~+60 | ||||
| DC020SD | 130~180 | 5 | 0.50 | 20.0 | 1.25 | 300 | -30~+60 | 50.8*50.8*13 | TAB | |
| 223~235 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 470~700 | Full | 0.50 | 16.0 | 1.4 | 400 | -30~+75 | ||||
| 600~800 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 960~1225 | Full | 0.40 | 20.0 | 1.25 | 800 | -55~+95 | ||||
| DC030SC | 200-300 | 10 | 0.50 | 20.0 | 1.25 | 300 | -30~+75 | 42*42*11.5 | TAB | |
| 320~360 | Full | 0.30 | 20.0 | 1.25 | 300 | -40~+90 | ||||
| 350~370 | Full | 0.25 | 25.0 | 1.15 | 300 | -40~+90 | ||||
| 400~480 | Full | 0.30 | 20.0 | 1.25 | 300 | -40~+90 | ||||
| 500~700 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 615~960 | Full | 0.60 | 16.0 | 1.40 | 300 | -30~+75 | ||||
| DC040SA | 300~500 | 50 | 0.30 | 20.0 | 1.25 | 200 | -30~+75 | 35*38*13 | TAB | |
| 370~410 | Full | 0.40 | 20.0 | 1.25 | 200 | -30~+75 | ||||
| 410~470 | Full | 0.40 | 20.0 | 1.25 | 200 | -30~+75 | ||||
| 600~800 | Full | 0.60 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1350~1850 | Full | 0.50 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1800~2200 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| DC070SA | 300~600 | 10 | 0.50 | 20.0 | 1.25 | 50 | -30~+60 | 25.4*25.4*10 | TAB | |
| 223~235 | Full | 0.50 | 17.0 | 1.40 | 50 | 0~+60 | ||||
| 700~2700 | 100 | 0.30 | 23.0 | 1.20 | 200 | -40~+90 | ||||
| 758~803 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 825~960 | Full | 0.30 | 20.0 | 1.25 | 200 | -40~+90 | ||||
| 960~1215 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1700~2200 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1805~1880 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1920~1990 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2110~2180 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2300~2700 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| DC130SA | 350~600 | 10 | 0.50 | 20.0 | 1.25 | 50 | 0~+60 | 19*19*8 | TAB | |
| 700~1000 | 50 | 0.50 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 890~960 | Full | 0.40 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 990~1130 | Full | 0.50 | 18.0 | 1.30 | 100 | -30~+75 | ||||
| 1300~2500 | 70 | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 1710~1880 | Full | 0.30 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 1805~2690 | Full | 0.60 | 15.0 | 1.50 | 100 | -30~+75 | ||||
| 2500~2700 | Full | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 3300~3800 | Full | 0.40 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| DC188SD | 800~1500 | 20 | 0.40 | 20.0 | 1.25 | 50 | -30~+75 | 12.7*12.7*6.5 | TAB | |
| 990~1130 | Full | 0.60 | 18.0 | 1.30 | 50 | -30~+75 | ||||
| 1600~1630 | Full | 0.25 | 25.0 | 1.15 | 100 | -55~+95 | ||||
| 1800~5000 | 200 | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 3700~4200 | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| 4400~5000 | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| 5000~8000 | 600 | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| DC800PA | 8~18GHz | 300 | 0.30 | 23.0 | 1.20 | 20 | -40~+75 | 8.9*15*7.7 | TAB | |
| 1000 | 0.40 | 20.0 | 1.25 | 20 | -40~+75 | |||||
| 7.7~8.4GHz | Full | 0.40 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| 9~11GHz | Full | 0.50 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| 14~16GHz | Full | 0.50 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| DC1800PA | 18~40GHz | 500 | 0.40 | 20.0 | 1.25 | 10 | -40~+75 | 13*18*12.7 | TAB | |
| 1000 | 0.50 | 20.0 | 1.25 | 10 | -40~+75 | |||||
| 2000 | 0.60 | 18.0 | 1.30 | 10 | -40~+75 | |||||
| 24~28GHz | Full | 0.60 | 18.0 | 1.30 | 10 | -40~+75 | ||||
| 32~40GHz | Full | 0.80 | 18.0 | 1.30 | 10 | -40~+75 |
