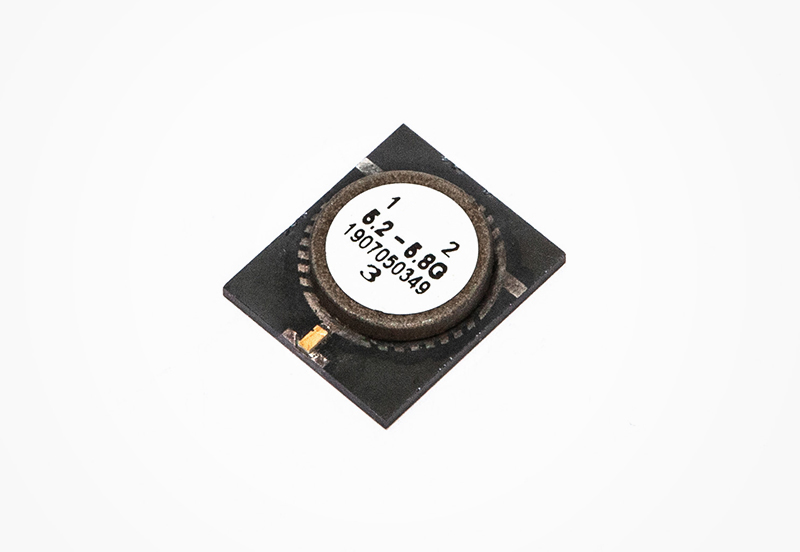

Microstrip isolators and circulators have the advantages of small size, planar structure, light weight, and wide operating bandwidth, and are widely used in phased array radar, airborne radar, satellite communication systems, etc.
Products can be provided at any frequency within the 4GHz-50GHz range.
Power can reach 5W-50W.
Products can be designed according to the user's specific specifications and size requirements.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | Isolation(dB Min) | VSWR(Max) | Average power(W) | Operating Temperature(℃) | Size L*W*H(mm) |
| MC300A | 3.0-4.5 | 50 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 14*16*5 |
| 200 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| 500 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | |||
| MC400A | 4.0~5.5 | 50 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 12*14*5 |
| 200 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| 600 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | |||
| MC550A | 5.5~8.5 | 100 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 12.7*12.7*6 |
| 400 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| 5.8~6.5 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||
| 6.4~7.4 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||
| 7.4~8.4 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||
| MC800A | 8.0~13 | 200 | 0.35 | 23.0 | 1.20 | 5 | -55~+95 | 9*10*5 |
| 400 | 0.40 | 20.0 | 1.25 | 5 | -55~+95 | |||
| 800 | 0.50 | 20.0 | 1.25 | 5 | -55~+95 | |||
| MC1200A | 12~22 | 200 | 0.35 | 23.0 | 1.20 | 5 | -55~+95 | 6*7.5*4.5 |
| 500 | 0.40 | 20.0 | 1.25 | 5 | -55~+95 | |||
| 1000 | 0.50 | 20.0 | 1.25 | 5 | -55~+95 | |||
| MC2800A | 22~30 | 200 | 0.40 | 23.0 | 1.20 | 3 | -55~+95 | 7*7*3.5 with magnetic shielding cover |
| 500 | 0.50 | 23.0 | 1.20 | 3 | -55~+95 | |||
| 1000 | 0.60 | 20.0 | 1.25 | 3 | -55~+95 | |||
| 27.5~29.5 | Full | 0.80 | 20.0 | 1.25 | 3 | -55~+95 |
