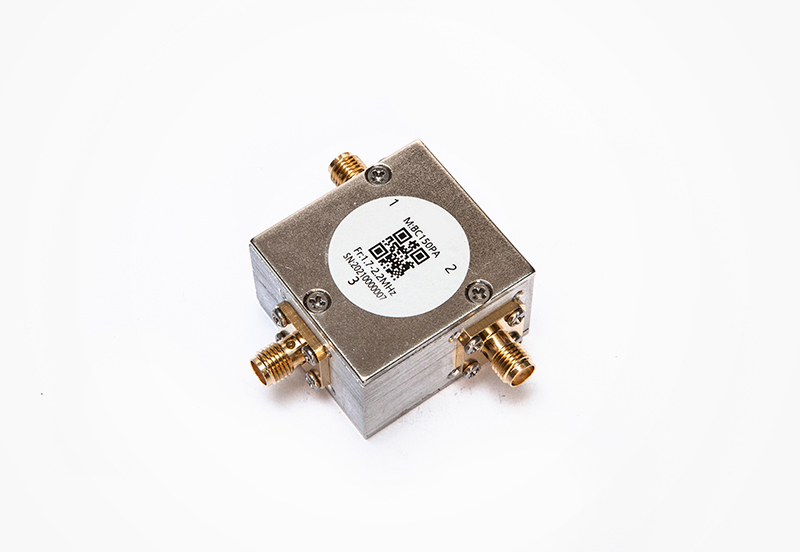

Broadband (multiplex, dual-band) isolators and circulators feature a wide frequency coverage, broad application areas, strong confidentiality, and high selectivity. They are mainly used in microwave measurement systems and complete machines or components after system frequency synthesis.
Products can be provided for any frequency within the range of 700MHz-50GHz.
Products can be designed according to the user's specific specifications and dimensional requirements.
The installation method of the products can be negotiated according to user requirements.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | Isolation(dB Min) | VSWR(Max) | Average power(W) | Operating Temperature(°C) | Size L*W*H(mm) | Connector Type | Product spec |
| BC007PA | 0.80~0.12 | Full | 0.80 | 18.0 | 1.30 | 100 | 0~+60 | 64*66*22 | SMA/N | |
| 0.13~0.18 | Full | 0.80 | 18.0 | 1.30 | 100 | 0~+60 | ||||
| 0.225~0.40 | Full | 0.80 | 18.0 | 1.30 | 100 | 0~+60 | ||||
| BC020PA | 0.48~0.86 | Full | 0.70 | 15.0 | 1.45 | 200 | 0~+60 | 52*57.5*20 | SMA/N | |
| 0.70~1.0 | Full | 0.50 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 0.95~1.45 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| BC100PA | 1.0~2.0 | Full | 0.70 | 16.0 | 1.40 | 100 | 0~+60 | 64*66*26 | SMA/N | |
| BC150PA | 1.5~2.5 | Full | 0.70 | 17.0 | 1.35 | 100 | -30~+60 | 45*45*19 | SMA/N | |
| BC200PA | 2.0~4.0 | Full | 0.60 | 18.0 | 1.35 | 100 | 0~+60 | 32*34*21 | SMA/N | |
| BC200PB | 2.0~6.0 | Full | 0.80 | 15.0 | 1.50 | 100 | 0~+60 | 30.5*30.5*15 | SMA | |
| BC080PC | 3.0~6.0 | Full | 0.50 | 18.0 | 1.30 | 50 | -30~+75 | 25.4*28.5*20 | SMA/N | |
| BC400PA | 4.0~8.0 | Full | 0.50 | 18.0 | 1.30 | 50 | -30~+75 | 20*26*14 | SMA | |
| 5.0~10.0 | Full | 0.50 | 18.0 | 1.30 | 50 | -30~+75 | ||||
| BC600PA | 6.0~12.0 | Full | 0.60 | 16.0 | 1.40 | 50 | -30~+75 | 16*21*13 | SMA | |
| BC600PB | 6.0~18.0 | Full | 1.50 | 11.0 | 1.90 | 30 | -30~+75 | 19*20.3*14 | SMA | |
| BC800PA | 8.0~12.0 | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+85 | 15*19*13 | SMA | |
| 10.0~15.0 | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+85 | ||||
| 12.0~18.0 | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+85 | ||||
| BC800PB | 8.0~18.0 | Full | 0.80 | 14.0 | 1.50 | 30 | -55~+85 | 19*20.3*14 | SMA | |
| BC1800PA | 18.0~26.5 | Full | 0.80 | 16.0 | 1.45 | 10 | -55~+85 | 13*18*12.7 | 2.92mm | |
| 26.5~40.0 | Full | 1.50 | 14.0 | 1.60 | 10 | -55~+85 |
