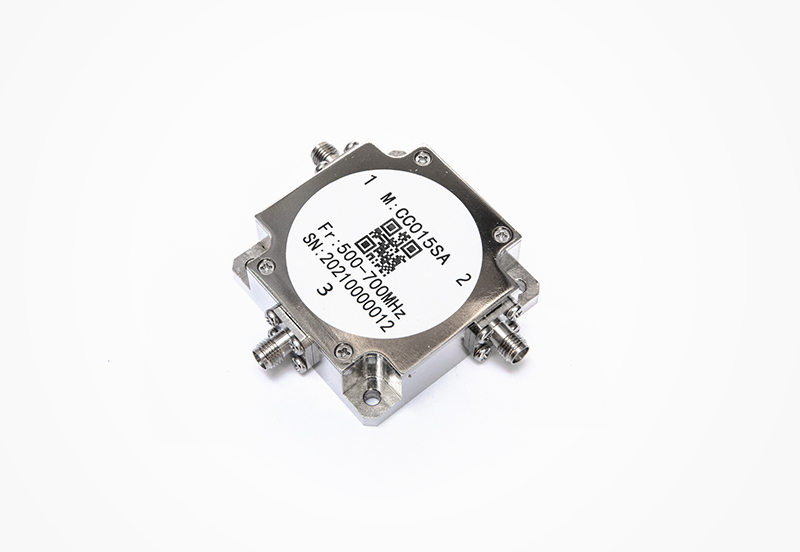

Coaxial isolators and circulators have the advantages of good magnetic shielding, easy installation, power resistance, strong anti-interference ability, and stable and reliable performance. They are mainly used in complete systems and projects of radar, electronic countermeasures, microwave measurement equipment, etc.
Products can be provided for any frequency within the 30MHz-50GHz range.
Users can choose connectors (N, 7/16, BMA, SMA, 2.92, etc. available).
Products can be designed according to the user's specific specifications and size requirements.
The installation method of the products can be negotiated according to user requirements.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | Isolation(dB Min) | VSWR(Max) | Average power(W) | Operating Temperature(°C) | Size L*W*H(mm) | Connector Type | Product spec |
| CC005PA | 40~70 | 2 | 1.00 | 18.0 | 1.30 | 300 | 0~+60 | 80*80*26 | SMA/N | |
| 72~76 | Full | 0.80 | 20.0 | 1.25 | 300 | 0~+60 | ||||
| 88~108 | Full | 0.80 | 18.0 | 1.30 | 600 | -30~+60 | ||||
| 118~136 | Full | 0.50 | 20.0 | 1.25 | 800 | -30~+60 | ||||
| 136~174 | Full | 0.50 | 20.0 | 1.25 | 800 | -30~+60 | ||||
| CC020PA | 200~300 | 20 | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | 52*57.5*20 | SMA/N | |
| 223~235 | Full | 0.30 | 23.0 | 1.20 | 400 | -30~+75 | ||||
| 300~400 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 470~700 | Full | 0.50 | 16.0 | 1.4 | 400 | -30~+75 | ||||
| 600~800 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 615~960 | Full | 0.60 | 16.0 | 1.40 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 600 | -55~+95 | ||||
| CC040SA | 300~500 | 20 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | 35*38*20 | SMA/N | |
| 350~370 | Full | 0.25 | 25.0 | 1.15 | 300 | -40~+90 | ||||
| 370~410 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 410~470 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 500~700 | Full | 0.60 | 16.0 | 1.40 | 200 | -30~+75 | ||||
| 600~800 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1350~1850 | Full | 0.50 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1800~2400 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| CC080PA | 600~1000 | 50 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | 25.4*28.5*20 | SMA/N | |
| 758~803 | Full | 0.25 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1000~3000 | 200 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | ||||
| 925~960 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 960~1215 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1300~1500 | Full | 0.30 | 23.0 | 1.20 | 200 | -55~+95 | ||||
| 1805~1880 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1920~1990 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2110~2180 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1700~2200 | Full | 0.40 | 20.0 | 1.25 | 200 | -40~+90 | ||||
| 2300~2700 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 2700~3100 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 3000~6500 | 300 | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 600 | 0.40 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 1000 | 0.50 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 3300~3800 | Full | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 4400-5000 | Full | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 5000~6000 | Full | 0.40 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| CC350PA | 4.0-8.0GHz | 300 | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | 16*21*15 | SMA | |
| 600 | 0.30 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 1000 | 0.40 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 3.7~4.2GHz | Full | 0.30 | 23.0 | 1.20 | 50 | -30~+75 | ||||
| 4.4~6.8GHz | Full | 0.50 | 16.0 | 1.40 | 50 | -30~+75 | ||||
| 5.0~7.0GHz | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| CC650PA | 8~18GHz | 300 | 0.25 | 25.0 | 1.15 | 50 | -55~+95 | 15*19*13 | SMA/2.92mm | |
| 600 | 0.30 | 23.0 | 1.20 | 50 | -55~+95 | |||||
| 1000 | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | |||||
| 2000 | 0.60 | 18.0 | 1.30 | 30 | -55~+95 | |||||
| 8~10.4GHz | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 9~11GHz | Full | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 12~15GHz | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 16~18GHz | Full | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| CC1800PA | 18~40GHz | 500 | 0.30 | 23.0 | 1.20 | 10 | -55~+95 | 13*18*12.7 | 2.92mm | |
| 1000 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||||
| 2000 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | |||||
| 18~22GHz | Full | 0.60 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| 24~30GHz | Full | 1.00 | 17.0 | 1.45 | 10 | -30~+75 | ||||
| 30~40GHz | Full | 1.20 | 16.0 | 1.45 | 10 | -55~+95 |
