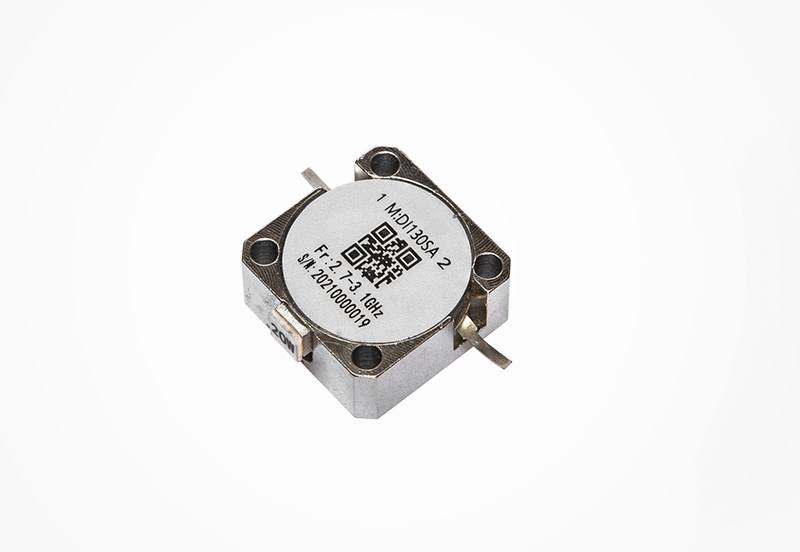

drop in isolator and circulators are widely used in mobile communication base stations, relay stations, and phased array radar systems due to their simple manufacturing process, ease of installation and soldering, as well as their low loss and high isolation characteristics.
They can provide various frequency products within the 30 MHz to 50 GHz range.
According to customer requirements, the load end can be connected to high-power resistors ranging from 10 to 500 watts, or attenuators from 1 to 30 dB.
Products can be designed according to the user's specific parameters and size requirements.
The installation method of the product can be negotiated according to user needs.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | lsolation(dB Min) | VSWR(Max) | Forward power(W) | Operating Temperature (℃) | Size L*W*H(mm) | Connector Type | Product spec |
| DI020SC | 130~180 | 5 | 0.40 | 25.0 | 1.15 | 300 | 0~+60 | 50.8*62*13 Connect to 300W load | TAB | |
| 10 | 0.50 | 20.0 | 1.25 | 300 | -30~+60 | |||||
| 136~174 | Full | 0.80 | 16.0 | 1.40 | 200 | -30~+60 | ||||
| 190~220 | Full | 0.50 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 223~235 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 470~700 | Full | 0.50 | 16.0 | 1.4 | 400 | -30~+75 | ||||
| 600-800 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 800 | -55~+95 | ||||
| DI030SC | 200~300 | 10 | 0.50 | 20.0 | 1.25 | 300 | -30~+75 | 42*52*11.5 Connect to 250W load | TAB | |
| 320~360 | Full | 0.30 | 20.0 | 1.25 | 300 | -40~+90 | ||||
| 350~370 | Full | 0.25 | 25.0 | 1.15 | 300 | -40~+90 | ||||
| 400~480 | Full | 0.30 | 20.0 | 1.25 | 300 | -40~+90 | ||||
| 500~700 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 615~960 | Full | 0.60 | 16.0 | 1.40 | 300 | -30~+75 | ||||
| DI040SB | 300-500 | 50 | 0.30 | 20.0 | 1.25 | 200 | -30~+75 | 35*46*13 Connect to 250W load | TAB | |
| 370~410 | Full | 0.40 | 20.0 | 1.25 | 200 | -30~+75 | ||||
| 410~470 | Full | 0.40 | 20.0 | 1.25 | 200 | -30~+75 | ||||
| 600-800 | Full | 0.60 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1350~1850 | Full | 0.50 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1800-2200 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| DI070SC | 300~600 | 10 | 0.50 | 20.0 | 1.25 | 50 | -30~+60 | 25.4*31.7*9 Connect to 250W load | TAB | |
| 223~235 | Full | 0.50 | 17.0 | 1.40 | 50 | 0~+60 | ||||
| 700~2700 | 100 | 0.30 | 23.0 | 1.20 | 200 | -40~+90 | ||||
| 758~803 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 825-960 | Full | 0.30 | 20.0 | 1.25 | 200 | -40~+90 | ||||
| 960~1215 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1700~2200 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1805~1880 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1920~1990 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2110~2180 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2300-2700 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| DI130SB | 350~600 | 10 | 0.50 | 20.0 | 1.25 | 50 | 0~+60 | 19*25.4*8 Connect to 150W load | TAB | |
| 700~1000 | 50 | 0.50 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 890~960 | Full | 0.40 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 990~1130 | Full | 0.50 | 18.0 | 1.30 | 100 | -30~+75 | ||||
| 1300~2500 | 70 | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 1710~1880 | Full | 0.30 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| 1805~2690 | Full | 0.60 | 15.0 | 1.50 | 100 | -30~+75 | ||||
| 2500~2700 | Full | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 3300~3800 | Full | 0.40 | 20.0 | 1.25 | 100 | -30~+75 | ||||
| DI188SD | 800~1500 | 20 | 0.40 | 20.0 | 1.25 | 50 | -30~+75 | 12.7*14.7*6.5 Connect to 20W load | TAB | |
| 990~1130 | Full | 0.60 | 18.0 | 1.30 | 50 | -30~+75 | ||||
| 1600~1630 | Full | 0.25 | 25.0 | 1.15 | 100 | -55~+95 | ||||
| 1800-5000 | 200 | 0.30 | 23.0 | 1.20 | 100 | -30~+75 | ||||
| 3700~4200 | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| 4400~5000 | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| 5000~8000 | 600 | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| DI800PA | 8~18GHz | 300 | 0.30 | 23.0 | 1.20 | 20 | -40~+75 | 8.9*15*7.7 | TAB | |
| 1000 | 0.40 | 20.0 | 1.25 | 20 | -40~+75 | |||||
| 7.7~8.4GHz | Full | 0.40 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| 9~11GHz | Full | 0.50 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| 14~16GHz | Full | 0.50 | 20.0 | 1.25 | 20 | -40~+75 | ||||
| DI800PB | 18~40GHz | 500 | 0.40 | 20.0 | 1.25 | 10 | -40~+75 | 13*18*12.7 | TAB | |
| 1000 | 0.50 | 20.0 | 1.25 | 10 | -40~+75 | |||||
| 2000 | 0.60 | 180 | 1.30 | 10 | -40~+75 | |||||
| 18~22GHz | Full | 0.60 | 180 | 1.30 | 10 | -40~+75 | ||||
| 30~36GHz | Full | 0.80 | 180 | 1.30 | 10 | -40~+75 |
