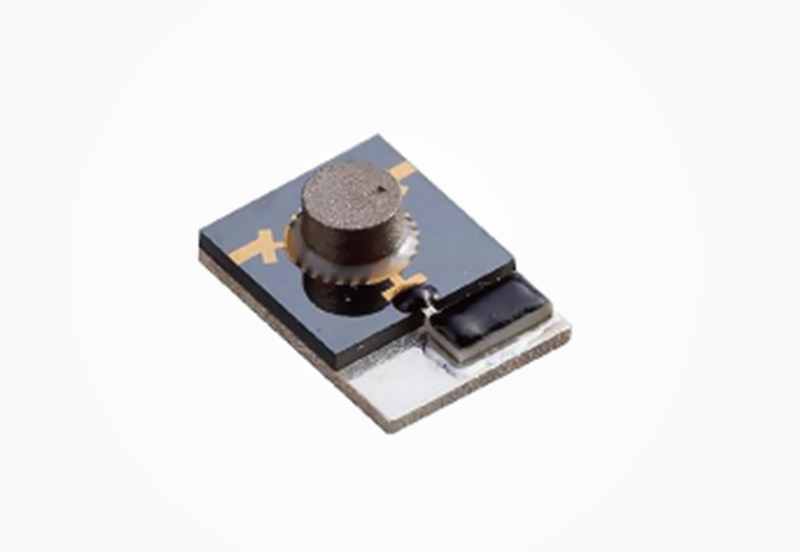

Linear (embedded) isolators and circulators have the advantages of small size, flat structure, light weight, and wide operating bandwidth, and are therefore widely used in phased array radar, airborne radar, satellite communication systems, and other fields.
They can provide products across various frequencies in the 4GHz to 50GHz range.
Power can reach 5 watts to 50 watts.
Products can be designed according to the user's specific requirements and size specifications.
| Model No. | Frequency Range(MHz) | Band Width (MHz) | Insertion Loss(dB Max) | Isolation(dB Min) | VSWR(Max) | Forward power(W) | Operating Temperature(℃) | Size L*W*H (mm) | Product spec |
| MI300A | 3.0~4.5 | 50 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 14*16*5 | |
| 200 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| 500 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| MI400A | 4.0~5.5 | 50 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 12*14*5 | |
| 200 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| 600 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| MI550A | 5.5~8.5 | 100 | 0.35 | 23.0 | 1.20 | 10 | -55~+95 | 12.7*12.7*6 | |
| 400 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| 5.8~6.5 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| 6.4~7.4 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| 7.4~8.4 | Full | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||
| MI800A | 8.0~13 | 200 | 0.35 | 23.0 | 1.20 | 5 | -55~+95 | 9*10*5 | |
| 400 | 0.40 | 20.0 | 1.25 | 5 | -55~+95 | ||||
| 800 | 0.50 | 20.0 | 1.25 | 5 | -55~+95 | ||||
| MI1200A | 12~22 | 200 | 0.35 | 23.0 | 1.20 | 5 | -55~+95 | 6*7.5*4.5 | |
| 500 | 0.40 | 20.0 | 1.25 | 5 | -55~+95 | ||||
| 1000 | 0.50 | 20.0 | 1.25 | 5 | -55~+95 |
