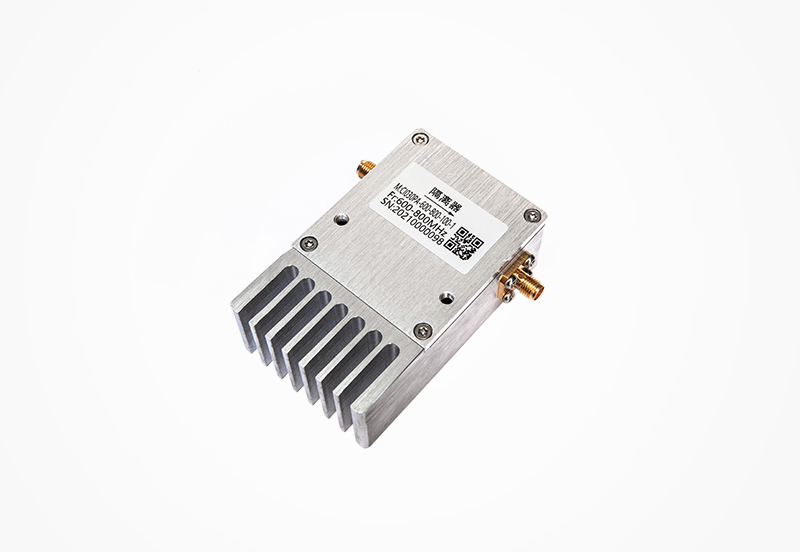

Coaxial isolators and circulators have advantages such as excellent magnetic shielding performance, easy installation, strong power handling capability, outstanding anti-interference ability, and stable and reliable performance. They are widely used in various complete machines and systems such as radar, electronic countermeasure equipment, and microwave measuring instruments.
They can provide products across the frequency range of 30 MHz to 50 GHz.
Connectors can be selected by the user (optional models include N, 7/16, BMA, SMA, 2.92, etc.).
Products can be designed according to the user's specific specifications and dimensional requirements.
The product installation method can be determined through negotiation based on user requirements.
| Model No. | Frequency Range(MHz) | Band Width(MHz) | Insertion Loss(dB Max) | lsolation(dB Min) | VSWR(Max) | Forward power(W) | Operating Temperature (℃) | Size L*W*H(mm) | Connector Type | Product spec |
| CI020PA | 200~300 | 20 | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | 52*57.5*20 Connect to 250W load | SMA/N | |
| 223~235 | Full | 0.30 | 23.0 | 1.20 | 400 | -30~+75 | ||||
| 300~400 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 470~700 | Full | 0.50 | 16.0 | 1.4 | 400 | -30~+75 | ||||
| 600~800 | Full | 0.30 | 20.0 | 1.25 | 400 | -30~+75 | ||||
| 615~960 | Full | 0.60 | 16.0 | 1.40 | 300 | -30~+75 | ||||
| 700~1000 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 600 | -55~+95 | ||||
| CI040SA | 300~500 | 20 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | 35*38*20 Connect to 150W load | SMA/N | |
| 350~370 | Full | 0.25 | 25.0 | 1.15 | 300 | -40~+90 | ||||
| 370~410 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 410~470 | Full | 0.40 | 20.0 | 1.25 | 300 | -30~+75 | ||||
| 500~700 | Full | 0.60 | 16.0 | 1.40 | 200 | -30~+75 | ||||
| 600~800 | Full | 0.50 | 18.0 | 1.30 | 300 | -30~+75 | ||||
| 960~1225 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1100~1600 | Full | 0.60 | 16.0 | 1.40 | 200 | -30~+75 | ||||
| 1350~1850 | Full | 0.50 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| 1800~2400 | Full | 0.30 | 20.0 | 1.25 | 300 | -55~+90 | ||||
| CI080PA | 600~1000 | 50 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | 25.4*28.5*20 Connect to 100W load | SMA/N | |
| 758~803 | Full | 0.25 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1000~3000 | 200 | 0.30 | 23.0 | 1.20 | 200 | -30~+75 | ||||
| 925~960 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 960~1215 | Full | 0.40 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 1300~1500 | Full | 0.30 | 23.0 | 1.20 | 200 | -55~+95 | ||||
| 1805~1880 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1920~1990 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 2110~2180 | Full | 0.20 | 25.0 | 1.15 | 200 | -40~+90 | ||||
| 1700~2200 | Full | 0.40 | 20.0 | 1.25 | 200 | -40~+90 | ||||
| 2300~2700 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 2700~3100 | Full | 0.30 | 20.0 | 1.25 | 200 | -55~+95 | ||||
| 3000~6500 | 300 | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 600 | 0.40 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 1000 | 0.50 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 3300~3800 | Full | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 4400-5000 | Full | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| 5000-6000 | Full | 0.40 | 23.0 | 1.20 | 100 | -55~+95 | ||||
| CI350PA | 4.0~8.0GHz | 300 | 0.30 | 23.0 | 1.20 | 100 | -55~+95 | 16*21*15 Connect to 10W load | SMA | |
| 600 | 0.30 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 1000 | 0.40 | 20.0 | 1.25 | 100 | -55~+95 | |||||
| 3.7~4.2GHz | Full | 0.30 | 23.0 | 1.20 | 50 | -30~+75 | ||||
| 4.4~6.8GHz | Full | 0.50 | 16.0 | 1.40 | 50 | -30~+75 | ||||
| 5.0~7.0GHz | Full | 0.50 | 20.0 | 1.25 | 50 | -30~+75 | ||||
| CI700PA | 8~18GHz | 300 | 0.25 | 25.0 | 1.15 | 50 | -55~+95 | 12*20*13 | SMA/ 2.92mm | |
| 600 | 0.30 | 23.0 | 1.20 | 50 | -55~+95 | |||||
| 1000 | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | |||||
| 2000 | 0.60 | 18.0 | 1.30 | 30 | -55~+95 | |||||
| 8~10.4GHz | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 9~11GHz | Full | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 12~15GHz | Full | 0.50 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| 16~18GHz | Full | 0.40 | 20.0 | 1.25 | 30 | -55~+95 | ||||
| CI1800PA | 18~40GHz | 500 | 0.30 | 23.0 | 1.20 | 10 | -55~+95 | 13*18*12.7 | 2.92mm | |
| 1000 | 0.40 | 20.0 | 1.25 | 10 | -55~+95 | |||||
| 2000 | 0.50 | 20.0 | 1.25 | 10 | -55~+95 | |||||
| 18~22GHz | Full | 0.60 | 20.0 | 1.25 | 10 | -55~+95 | ||||
| 24~30GHz | Full | 1.00 | 17.0 | 1.45 | 10 | -30~+75 | ||||
| 30~40GHz | Full | 1.20 | 16.0 | 1.45 | 10 | -55~+95 |
