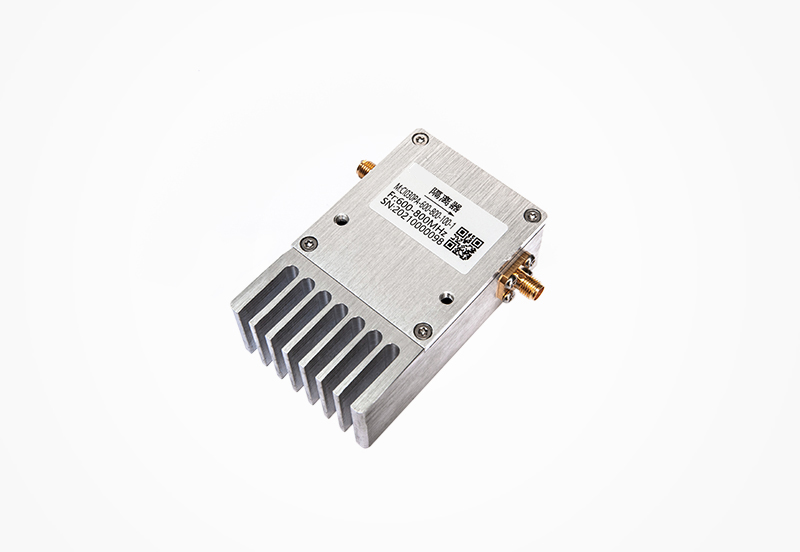

The high-power 50W RF isolator with 50 ohm standard impedance is a core passive non-reciprocal component tailored for high-power radio frequency transmission systems, widely adopted in wireless communication base stations, radar detection equipment, RF power amplification systems and industrial wireless transmission scenarios. Adhering to the industry-standard 50 ohm impedance matching design, this isolator perfectly fits the mainstream RF system impedance specifications, eliminating impedance mismatch problems that cause signal reflection, power attenuation and waveform distortion. Its maximum continuous wave power handling capacity of 50W enables it to operate stably in high-power transmission environments, effectively bearing long-term high-load RF signal output without performance degradation or equipment damage, which solves the pain point of ordinary low-power isolators being unable to adapt to high-power working conditions.

This RF isolator adopts high-performance ferrite magnetic materials and optimized microwave circuit structure design, realizing excellent unidirectional signal transmission characteristics. It allows forward RF signals to pass through with extremely low insertion loss, ensuring the integrity and strength of transmission signals, while efficiently isolating and absorbing reverse reflected signals. The superior reverse isolation performance can effectively block signal reflection caused by load mismatch, antenna standing wave fluctuation and circuit impedance deviation, preventing reverse high-power signals from impacting and damaging precision core equipment such as RF transmitters and power amplifiers. In complex high-power RF systems, it acts as a reliable signal protection barrier to maintain the stability of the entire signal transmission link.

In terms of overall performance and environmental adaptability, the 50W 50-ohm RF isolator features low voltage standing wave ratio (VSWR), high return loss and outstanding thermal stability. Equipped with a high-efficiency heat dissipation structure composed of copper-tungsten alloy heat sinks and metallized thermal vias, it can continuously work stably in a temperature range of -55℃ to +85℃, avoiding performance failure caused by high-temperature heat accumulation under long-term high-power operation. Strictly calibrated 50-ohm impedance consistency ensures universal compatibility with various standard RF cables, connectors and system modules. It has become an indispensable key component for improving signal transmission efficiency, protecting system equipment and enhancing the anti-interference ability of high-power RF wireless systems.
