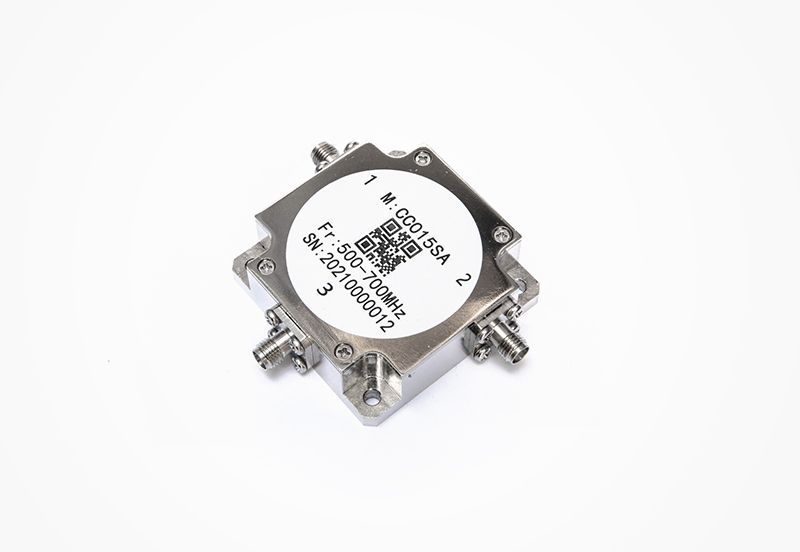

Military grade rugged RF circulators tailored for airborne applications are high-reliability passive microwave components designed to meet extreme environmental and mechanical working conditions of military aviation equipment. Different from commercial civilian circulators, this series of products adopts military-standard ruggedized design in structural reinforcement, material selection and performance calibration, fully adapting to the high vibration, high impact, wide temperature fluctuation and low-pressure airborne working environment. The core functional structure uses high-temperature resistant ferrite materials and high-stability magnetic components, with optimized non-reciprocal junction design to maintain consistent signal circulation performance under extreme operating conditions. All internal components are sealed and reinforced with high-strength alloy shells and shock-absorbing filling materials, which effectively resists mechanical damage and structural deformation caused by airborne maneuvering vibration and high-load impact.

This airborne rugged RF circulator implements strict military-grade environmental adaptability standards, covering ultra-wide temperature working range, high humidity resistance, salt spray corrosion resistance and radiation resistance. It can stably operate in the temperature range of -55℃ to +125℃, without performance attenuation or parameter drift under rapid temperature change conditions in high-altitude airborne scenarios. The fully sealed waterproof and dustproof structure prevents high-altitude low-pressure air leakage, airborne moisture and dust from invading the internal circuit, ensuring stable operation in complex airborne atmospheric environments. In terms of mechanical performance, the product passes military-standard vibration and impact tests, resisting random vibration during aircraft cruising and instantaneous impact load during takeoff, landing and tactical maneuvering, avoiding structural loosening and signal transmission failure.

In terms of electrical performance, military grade airborne RF circulators maintain ultra-high reliability and precision indicators to meet the strict signal transmission requirements of military airborne radar, communication navigation and electronic countermeasure systems. The product features low insertion loss, high port isolation and ultra-low VSWR, which effectively suppresses signal reflection, crosstalk and interference, ensuring high-precision one-way transmission of RF signals in airborne transceiver systems. Its compact and lightweight ruggedized packaging design adapts to the strict load and space limitation requirements of airborne equipment, avoiding excessive weight occupation that affects aircraft maneuverability. Widely applied in military fighter airborne radar pods, helicopter communication modules, military transport aircraft navigation systems and airborne electronic warfare equipment, this rugged circulator guarantees the continuous and stable operation of core military airborne electronic systems under harsh combat and flight conditions, and is an indispensable key component of modern military airborne RF systems.
