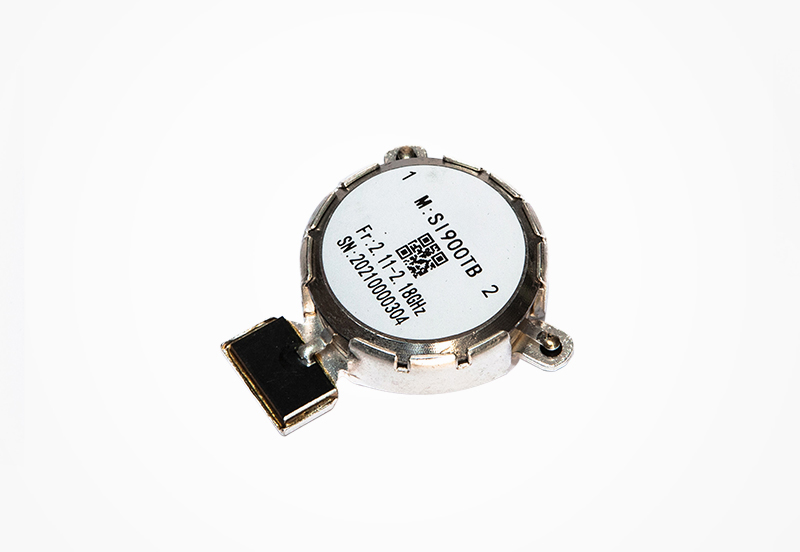

The low-loss isolator with 20 dB minimum isolation is a high-performance RF passive component that balances ultra-low insertion loss and excellent reverse isolation performance, tailored for high-sensitivity and high-efficiency RF signal transmission systems. The 20 dB minimum isolation index serves as a strict performance threshold, ensuring the device can attenuate reverse reflected signals and interference signals to less than one-tenth of the original power, which effectively avoids the negative impact of signal reflection on front-end signal sources and amplifier components. Different from ordinary isolators that often sacrifice insertion loss for higher isolation, this series of isolators adopts advanced low-loss ferrite materials and optimized impedance matching circuit design, minimizing signal power loss during forward transmission while maintaining stable high-isolation performance.

Low insertion loss is the core competitive advantage of this type of isolator, which directly determines the signal transmission efficiency of the entire RF system. In wireless communication base stations, satellite communication equipment, and microwave relay systems, every tiny signal loss will lead to reduced transmission distance, weakened signal coverage, and increased equipment energy consumption. This low-loss isolator effectively reduces signal attenuation in the passband, ensures maximum utilization of signal source power, and improves the overall working efficiency of the communication system. At the same time, the stable 20 dB minimum isolation capability can reliably suppress load mismatch reflection, multi-path signal interference, and channel crosstalk, protecting precision active devices such as power amplifiers and low-noise amplifiers from burnout or performance degradation caused by reverse signals.

This isolator also features excellent frequency stability and linear performance, maintaining consistent low-loss and high-isolation indicators within the full operating frequency band. Its internal circuit structure is precisely optimized to reduce harmonic distortion and phase shift fluctuation, ensuring high-fidelity transmission of RF signals. In terms of practical application value, it not only improves the stability and reliability of communication equipment operation but also reduces the system’s subsequent signal compensation cost and maintenance frequency. Whether used in civilian communication systems or military microwave equipment, this low-loss isolator with 20 dB minimum isolation can significantly enhance the comprehensive performance of RF circuits, achieving a perfect balance between signal transmission efficiency and system anti-interference ability.
