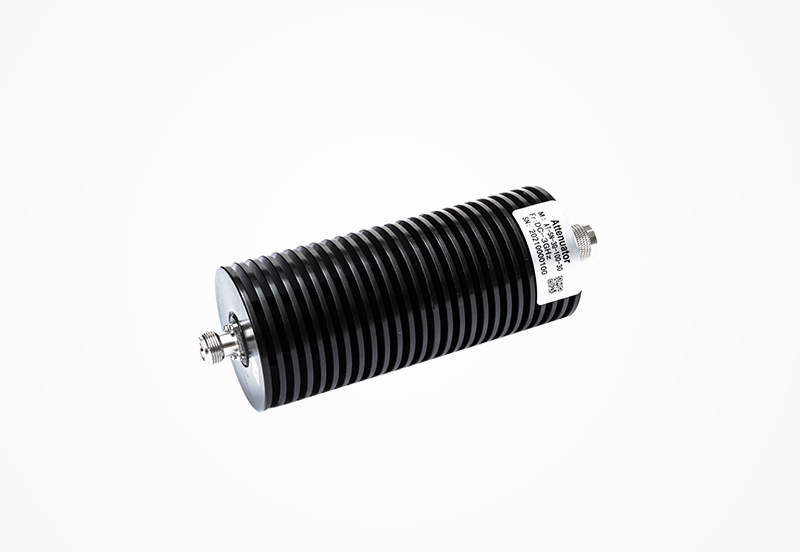

A coaxial attenuator is an RF microwave device that dissipates energy. By selecting resistive materials with different attenuation values, attenuators with various attenuation values and power ratings can be realized. In addition to the commonly used fixed resistive attenuators, there are also adjustable attenuators. They feature a wide operating frequency range, low voltage standing wave ratio (VSWR), flat attenuation, and strong anti-burning capability. They are widely used in various occasions where power level adjustment is required. Attenuators of various specifications can be customized according to customer requirements.
| Model No. | Frequency range(GHz) | Attenuation Values (db) | VSWR | Power(W) | Size mm | Connector Type |
| AT-RB-3G-2-XX | DC-3 | 1-10,20,30,40 | ≤1.3 | 2 | ∅20*82 | BNC/N/SMA |
| AT-RS-6G-5-XX | DC-3 | 1-10,20,30,40 | ≤1.3 | 5 | ∅20*82 | SMA/N |
| AT-RS-6G-10-XX | DC-6 | 1-10,20,30,40 | ≤1.3 | 10 | ∅38*95 | SMA/N |
| AT-RS-6G-25-XX | DC-6 | 1-10,20,30,40 | ≤1.3 | 25 | ∅38*95 | SMA/N |
| AT-RS-6G-50-XX | DC-6 | 1-10,20,30,40 | ≤1.3 | 50 | ∅45*124 | SMA/N |
| AT-RS-6G-100-XX | DC-6 | 1-10,20,30,40 | ≤1.3 | 100 | ∅45*167 | SMA/N |
| AT-SN-4G-300-XX | DC-4 | 10,20,30,40 | ≤1.5 | 300 | 353*140*132 | N,7/16 |
| AT-ST-4G-500-XX | DC-4 | 1-10,20,30,40 | ≤1.5 | 500 | 437*140*132 | TNC |
| AT-SN-18G-250-XX | DC-18 | 10,20,30,40 | ≤1.55 | 250 | 415*80*80 | TNC/N |
| AT-SN-18G-500-XX | DC-18 | 10,20,30,40 | ≤1.55 | 500 | 688*120*110 | N |
| AT-RS-40G-1-XX | DC-40 | 1-10,20,30,40 | ≤1.35 | 5 | ∅8*29 | 2.4mm |
| AT-RS-40G-5-XX | DC-40 | 1-10,20,30,40 | ≤1.35 | 5 | ∅38*47.6 | 2.4mm |
| AT-RS-40G-10-XX | DC-40 | 1-10,20,30,40 | ≤1.40 | 10 | ∅38*47.6 | 2.4mm |
| AT-RS-40G-20-XX | DC-40 | 1-10,20,30,40 | ≤1.40 | 20 | ∅45*96 | 2.92mm |
| AT-RS-40G-30-XX | DC-40 | 1-10,20,30,40 | ≤1.40 | 30 | ∅45*113 | 2.92mm |
| AT-RS-40G-50-XX | DC-40 | 20,30,40 | ≤1.60 | 50 | ∅45*145 | 2.92mm |
| Model rules: product category AT-shape/connector type-stop frequency-power-attenuation value | ||||||
