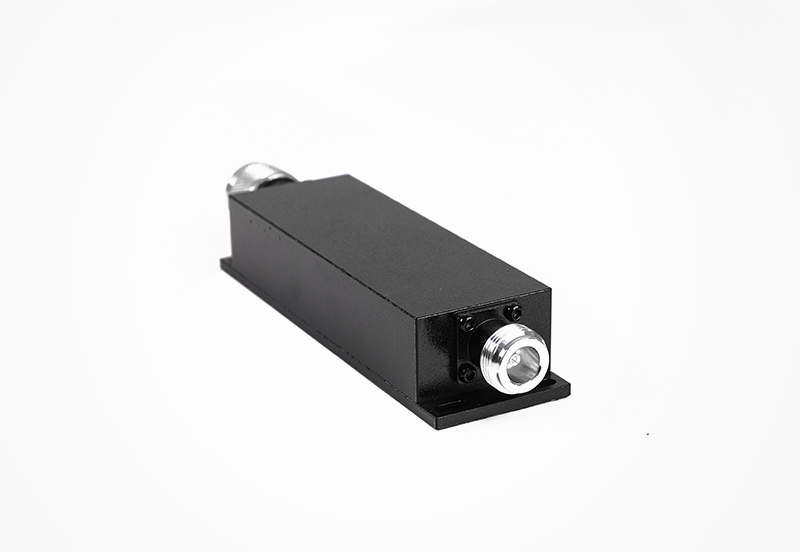

An LC low-pass filter is a microwave filtering device that allows signals below the cutoff frequency to pass through, while preventing signals above the cutoff frequency from passing through.
It can be customized according to customer requirements.
| Model No. | Pass Band (MHz) | Reject Band(MHz) | Insertion Loss(dB) | Return Loss(dB) | Rejection(dB) | Connecto Type |
| LPF-50-300-60S | DC-50 | 300-600 | ≤1.5 | ≥14 | ≥60 | N |
| LPF-100-400-60S | DC-100 | 400-800 | ≤1.5 | ≥14 | ≥60 | N |
| LPF-175-280-40N | 140-175 | 280-525 | ≤0.5dB | ≥14 | ≥40dB | N |
| LPF-200-700-60S | DC-200 | 700-1000 | ≤1.5 | ≥12 | ≥60 | SMA |
| LPF-400-700-60N | 350-400MHz | 700-800MHz | ≤0.5dB | ≥14 | ≥60dB | N |
| LPF-470-800-40N | 400-470MHz | 800-1410MHz | ≤0.5dB | ≥14 | ≥40dB | N |
| LPF-500-700-60S | DC-500 | 700-1000 | ≤1.5 | ≥12 | ≥60 | SMA |
| LPF-2.6G-3.4G-70S | 1710-2690 | 3420-8000 | ≤2.5 | ≥14 | ≥70 | SMA |
| LPF-1.0G-1.4G-40S | DC-1000 | 1400 | ≤1.5 | ≥15 | ≥40 | SMA |
| LPF-915-1.3G-70S | 663-915 | 1320-5000 | ≤1.2 | ≥14 | ≥70 | SMA |
| Model rules: Product category LPF-passband end frequency-stopband start frequency-stopband suppression/connector type | ||||||
