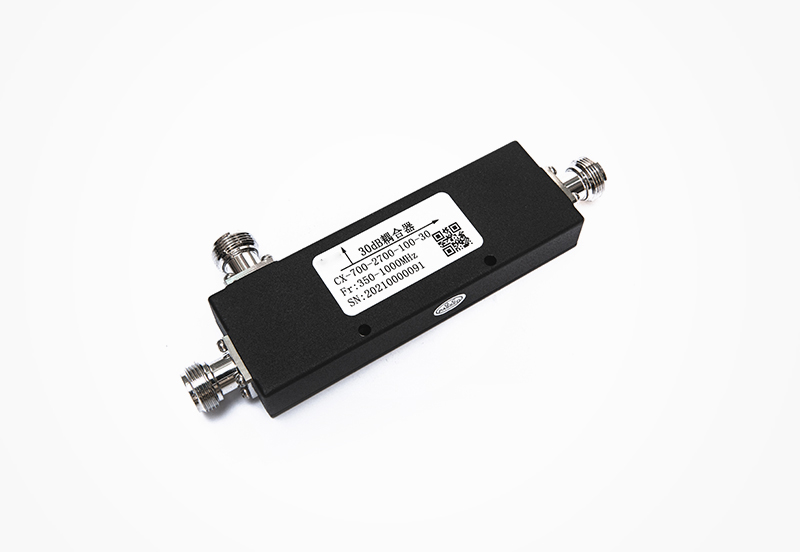

Coupler products are widely used in microwave measurement, sampling, high-power detection, radar, communication, satellite communication, and other systems. They feature a compact structure, high coupling accuracy, large power capacity, low voltage standing wave ratio, and wide frequency response. Surface treatments include silver plating, copper plating, passivation, and conductive oxidation. The dimensions, flanges, connector types, materials, surface treatments, and electrical specifications of the couplers can be customized according to user requirements.
| Model No. | Frequency(MHz) | Coupling(dB) | VSWR | Connector Type | Insertion Loss(dB) | Power(W) | Size(L*W*H)mn |
| CX-350-1000-100-XX | 350-1000 | 6±0.5 | ≤1.25 | NF | ≤0.80 | 200 | 148*25*15 |
| 10±0.8 | |||||||
| 15±0.8 | |||||||
| 20±1.0 | |||||||
| 30±1.0 | |||||||
| CX-700-2700-100-XX | 700-2700 | 6±0.8 | ≤1.25 | NF | ≤0.50 | 200 | 120*40*18 |
| 10±1.0 | |||||||
| 15±1.0 | |||||||
| 20±1.0 | |||||||
| 30±1.0 | |||||||
| CX-2000-4000-500-XX | 2000-4000 | 20±1.5 | ≤1.25 | NF | ≤0.40 | 500 | 138*72*28 |
| 30±0.8 | |||||||
| 40±1.0 | |||||||
| CX-2000-4000-500-50 | 2000-4000 | 50±1.5 | ≤1.30 | NF | ≤0.50 | 500 | 175*103*70 |
| CX-0.6-3.9G-150-40 | 0.6-3.9G | 40±1.5 | ≤1.20 | NF | ≤0.60 | 150 | 101*59*28.5 |
| CX-2-8G-500-40 | 2-8G | 40±1.2 | ≤1.25 | NF | ≤0.30 | 500 | ∅30.5*113.4 |
| CX-2-18G-500-40 | 2-18G | 40±1.2 | ≤1.50 | NF | ≤0.80 | 400 | 107.6*30*40.9 |
| CX-4-18G-300-40 | 4-18G | 40±1.2 | ≤1.40 | NF | ≤0.90 | 300 | ∅30.5*113.4 |
| CX-6-26.5G-20-20 | 6-26.5G | 20±0.5 | ≤1.40 | NF | ≤0.8 | 20 | 31.8*12.7*16 |
| CX-2-40G-20-40 | 2-40G | 10±1.0 | ≤1.40 | NF | ≤1.60 | 20 | 43*17*11 |
| Model rules: product category CX-start frequency-stop frequency-power-coupling value | |||||||
