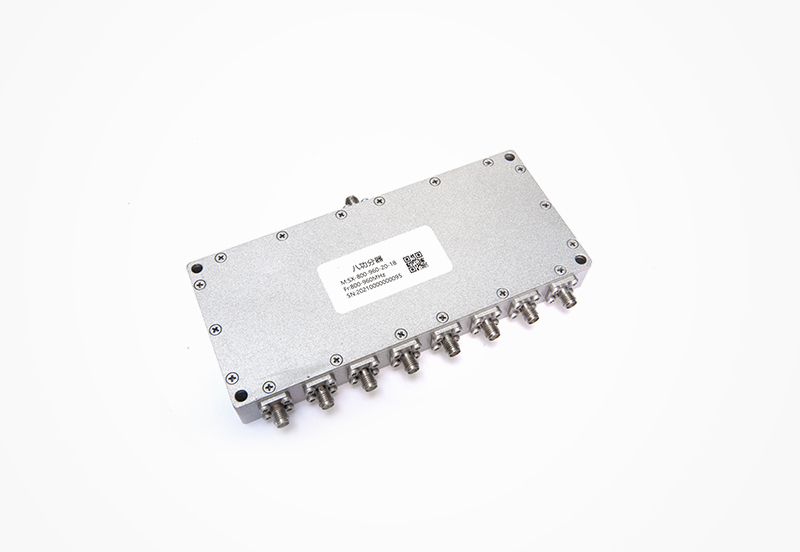

A power divider is a device that splits the energy of an input signal into two or more outputs with equal or unequal energy. The frequency range is 0.3-40GHz. The product performance is stable and consistent. It can be customized according to the actual needs of the user.
| Model No. | Frequency(MHz) | Insertion Loss(dB) | Power(W) | VSWR | lsolation(dB) | Connector Type(M) | Size(L*W*H)mm |
| SX-137-174-20-12 | 137-174 | ≤3.5 | 20 | ≤1.3 | ≥25 | 3-N | 94.5*77*25.5 |
| SX-137-174-20-14 | 137-174 | ≤3.5 | 20 | ≤1.3 | ≥25 | 5-N | 152.7*105.2*17 |
| SX-330-520-20-12 | 330-520 | ≤3.5 | 20 | ≤1.3 | ≥25 | 3-N | 94.5*77*25.5 |
| SX-330-520-20-14 | 330-520 | ≤6.5 | 20 | ≤1.3 | ≥25 | 5-N | 152.7*105.2*17 |
| SX-0.8-2.7-20-14 | 0.8-2.7G | ≤7.6 | 20 | ≤1.25 | ≥18 | 5-N | 62*42*10 |
| SX-0.8-2.7-20-18S | 0.8-2.7G | ≤11.5 | 20 | ≤1.6 | ≥18 | 9-SMA | 62*42*10 |
| SX-0.8-3G-20-116N | 0.8-3G | ≤16.0 | 20 | ≤1.8 | ≥15 | 17-N | 195*140*20 |
| SX-0.5-6G-20-14S | 0.5-6G | ≤8.8 | 20 | ≤1.8 | ≥15 | 5-SMA | 80*66*14 |
| SX-2-6G-20-12S | 2-6G | ≤3.8 | 20 | ≤1.5 | ≥18 | 3-SMA | 30*34*10 |
| SX-2-6G-20-116S | 2-6G | ≤16.0 | 20 | ≤1.6 | ≥16 | 17-SMA | 222*81*15 |
| SX-2-8G-20-12S | 2-8G | ≤3.8 | 20 | ≤1.4 | ≥18 | 3-SMA | 30*34*10 |
| SX-8-12G-20-12S | 8-12G | ≤4.0 | 20 | ≤1.5 | ≥18 | 3-SMA | 24*30*10 |
| SX-8-12G-20-14S | 8-12G | ≤7.6 | 20 | ≤1.6 | ≥16 | 5-SMA | 62*42*10 |
| SX-2-18G-20-12S | 2-18G | ≤4.2 | 20 | ≤1.5 | ≥18 | 3-SMA | 47*24*10 |
| SX-18-26.5G-20-12S | 18-26.5G | ≤3.6 | 20 | ≤1.6 | ≥18 | 3-SMA | 210*36*12.7 |
| SX-18-40G-20-12S | 18-40G | ≤5.0 | 20 | ≤1.8 | ≥17 | 3-SMA | 210*36*12.7 |
| Model rules: product category SX-start frequency-stop frequency-power-number of branches/connector type | |||||||
