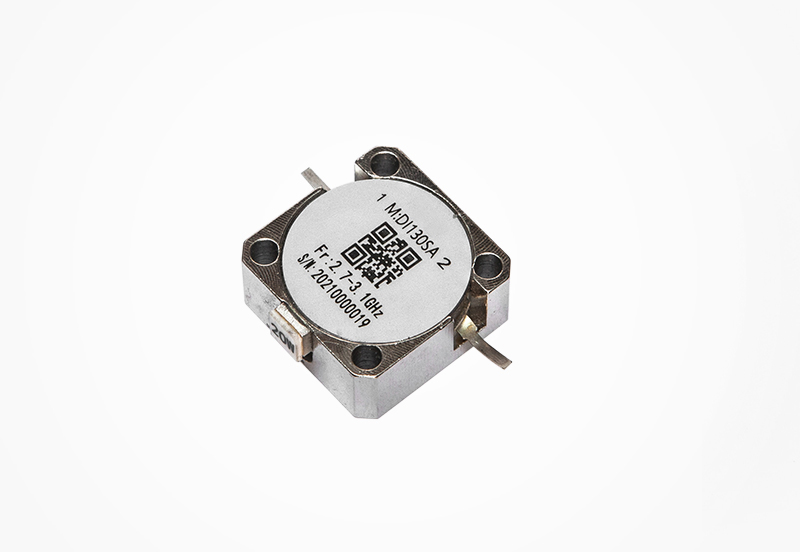

High power RF load and attenuator assemblies are specialized passive RF components developed for high-power microwave signal processing, designed to withstand continuous high-power signal input while achieving stable signal attenuation and safe load absorption. Unlike conventional low-power RF components, this integrated assembly is structurally optimized for high-power heat dissipation and electrical stability, making it suitable for high-power transmitter testing, RF amplifier aging testing, and industrial microwave equipment load matching scenarios. The assembly integrates a high-power resistive attenuation core and a professional heat dissipation structure, which can efficiently convert excess RF signal power into thermal energy and dissipate it rapidly, avoiding component burnout, signal saturation, and system overload failures caused by long-term high-power operation.

The core performance advantages of high power RF load and attenuator assemblies lie in their high power tolerance, ultra-low VSWR, and wide frequency adaptability. Premium assemblies support continuous power operation ranging from tens of watts to thousands of watts, covering the power requirements of most industrial and military high-power RF systems. The internal precision impedance matching design ensures a VSWR value close to 1 across the entire operating frequency band, minimizing signal reflection and power loss during high-power signal attenuation and load absorption. In addition, the optimized heat dissipation structure, including air-cooled and water-cooled designs for different power grades, solves the heat accumulation problem of high-power RF components during long-term operation. This structural design ensures that the assembly maintains stable attenuation accuracy and load performance without performance drift or damage under full-load continuous working conditions.

High power RF load and attenuator assemblies are widely deployed in key fields such as 5G macro base station testing, broadcast TV transmitter debugging, military radar system calibration, and industrial microwave heating equipment testing. In high-power amplifier production and aging tests, the assembly acts as a professional dummy load to replace real antenna loads, realizing safe and efficient aging detection of amplifier products. In RF system maintenance, it is used to absorb redundant high-power signals, protect core transmitting and receiving equipment from surge signal impact, and improve the overall operational safety of the RF system. With strict industrial-grade quality standards and environmental adaptability, the assembly can work stably in harsh industrial environments such as high temperature, dust, and vibration, providing long-term reliable high-power signal processing solutions for professional RF engineering systems.
